Data Studio vs Data Warehouse

Intent and ownership

This guide owns the architecture decision, not every dashboard problem

This guide owns one informational task: decide whether a reporting requirement should use a direct Data Studio connector, a controlled extract or blend, an upstream transformation, or a governed warehouse layer. It starts before dashboard layout. The output is an architecture decision contract that another person can inspect, reproduce, operate, and retire.

The GA4, CRM, and Data Studio discrepancy checklist remains the owner when an existing report already shows conflicting totals. The Reporting Dashboard Services page owns a scoped implementation after definitions and authority are approved. The Data Studio Dashboard Consultant page owns a consultation when the architecture, metrics, access, or handoff is still uncertain. The Data Studio Dashboard Setup page owns a fixed build when the input contract is already clear.

That separation prevents cannibalization and weak project sequencing. A buyer searching for a connector-versus-warehouse decision needs criteria, failure modes, and a defensible escalation path. A buyer with a broken total needs diagnosis. A buyer with an approved specification needs implementation. A direct connector can be technically available and still be the wrong reporting boundary; a warehouse can be technically impressive and still be unnecessary.

User task	Canonical owner	Owned outcome	Boundary
Choose direct connector, extract, upstream model, or warehouse	This guide	Decision contract, architecture route, hold rules, and acceptance plan	No account inspection or production certification
Find why an existing report does not match	Discrepancy checklist	First-divergence diagnosis across metric, grain, identity, dates, joins, and filters	Starts from a named report and mismatch
Clarify an uncertain Data Studio engagement	Dashboard consultation	Scoped source, metric, access, freshness, and handoff decision	Consultation rather than a pre-agreed build
Build an approved dashboard	Dashboard setup	One implementation against approved inputs and acceptance criteria	Requires a stable reporting contract
Resolve authority across several business systems	Systems Audit	Cross-tool owner, handoff, failure, evidence, and remediation map	Broader than reporting architecture alone

Eight-stage model

Move from the decision to a tested and owned reporting path

Architecture should follow the business decision, not the preferred tool. The eight stages below expose the first place where the direct path stops being reliable. They also keep a warehouse from becoming a vague container for unresolved definitions. Each stage produces a reviewable artifact and has a hold condition.

01Decision
02Source + grain
03Direct path
04Transform + join
05History + freshness
06Access + cost
07Test + reconcile
08Owner + handoff

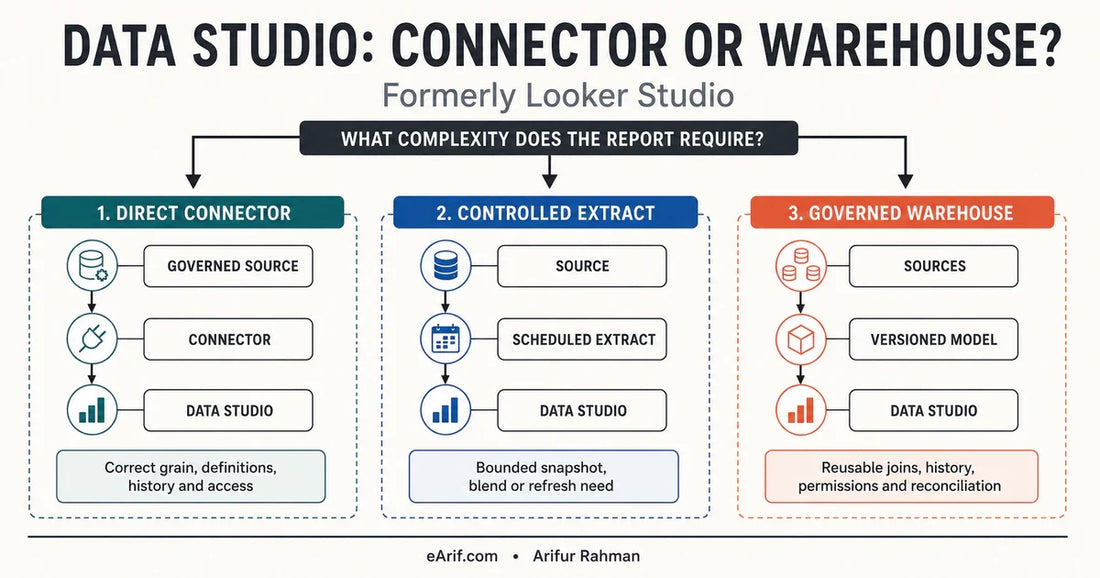

Crawlable equivalent for the article visual: define the decision; identify the authoritative source and row grain; prove the direct connector path; move reusable transformations and unsafe joins upstream; define historical and freshness behavior; assign credentials, query cost, and operating ownership; reconcile representative rows; then record the handoff, monitoring, change, and retirement rules.

Stage	Required question	Evidence	Hold when
Decision	What action will the report support?	Question, action, owner, cadence, and materiality	No accountable use is named
Source + grain	Which object is authoritative, once per what row?	Source inventory, keys, formula, date, and exclusions	The denominator or row identity is ambiguous
Direct path	Can one connector expose analysis-ready fields without hidden business logic?	Representative source-to-chart trace	The chart repairs source semantics locally
Transform + join	Which cleaning, deduplication, mapping, and joins are required?	Versioned rules, cardinality, and unmatched rows	A many-to-many relationship can multiply facts
History + freshness	Must values preserve prior states, and when should they update?	Snapshot, cutoff, latency, restatement, and retention rules	Current-state data is presented as historical fact
Access + cost	Whose credentials, permissions, and billing context apply?	Credential mode, least privilege, cost owner, and revocation path	A personal account is the undocumented production owner
Test + reconcile	Can a reviewer trace totals back to representative native rows?	Acceptance fixtures, reason codes, and monitored controls	Only visual totals were compared
Owner + handoff	Who operates, changes, approves, and retires the design?	Runbook, lineage, change log, and review date	The report has no durable owner

Interactive decision aid

Route one reporting requirement to its first unresolved layer

Answer all seven questions for one report, one decision, one source version, and one intended audience. This tool does not inspect accounts, transmit answers, or certify an architecture. It routes the requirement to decision-contract, direct-connector, extract, upstream-transformation, warehouse, access, reconciliation, decision-ready, or evidence-hold work.

Decision before technology

Define the report contract before selecting a connector or warehouse

“We need a dashboard” is not an architecture requirement. Start with the decision that a person will make, the action that may follow, and the consequence of a wrong or stale result. A weekly operating review, a near-real-time support queue, a month-end finance close, and an exploratory campaign report can legitimately use different sources and freshness rules even when they display a metric with the same label.

The contract must also say what a row represents. “Revenue” may mean an order, a paid transaction, an opportunity amount, a recognized ledger entry, or an attributed event value. “Customer” may mean a contact, company, account, subscriber, purchaser, or unique analytics identity. A chart cannot resolve that ambiguity. The architecture can only preserve or conceal it.

When I review a Data Studio architecture, I first remove the chart type and ask whether two independent reviewers can reproduce the numerator, denominator, date boundary, exclusions, and one representative row. If they cannot, adding a warehouse merely relocates the ambiguity. If they can, the direct connector may already be sufficient.

Contract field	Question to answer	Required evidence	Architecture effect
Decision and action	What may change because of this report?	Named owner, audience, cadence, and consequence	Sets reliability and freshness needs
Metric	What formula, unit, denominator, and exclusions apply?	Versioned definition and examples	Determines whether source fields are analysis-ready
Authoritative object	Which record owns the measured state?	Object, key, source, and permitted writers	Prevents labels from replacing authority
Row grain	Once per event, order, contact, opportunity, account, or day?	Primary key and duplicate rule	Controls aggregation and join safety
Date semantics	Created, occurred, paid, updated, closed, or recognized when?	Field, timezone, cutoff, and late-arrival rule	Controls historical and refresh design
Population	Who or what is eligible, included, excluded, unmatched, or unknown?	Filter and reason-code rules	Prevents silent row loss
Evidence level	Must a reviewer trace a chart to source rows?	Representative fixtures and lineage	Determines transformation and audit needs
Change control	Who can alter the source, connector, model, or report?	Owners, approvals, version, and review date	Determines durable operating boundary

Direct path

A direct connector is enough when the source is already reporting-ready

In Data Studio, a connector links the report to underlying data and a data source provides the configured fields, types, credentials, freshness behavior, and reusable modeling surface used by charts. Google documents that most connectors maintain a live connection, while an extracted data source is a static snapshot. A direct connection therefore does not mean “no architecture.” It means the source system, connector, and Data Studio data source together satisfy the contract without a separate governed storage and transformation layer.

The direct path is strongest when one source owns the metric, the relevant fields already share a coherent grain, required calculations are presentation-level rather than business-state transformations, and the source preserves enough history. A table or view designed for reporting can be direct even if upstream engineering created it. Conversely, a raw application table is not automatically direct-ready merely because a connector can query it.

Direct designs have useful advantages: fewer moving parts, less duplicated storage, quicker iteration, and simpler lineage from chart back to source. They also expose connector-specific limits, source latency, schema changes, quota or query behavior, and credential dependencies more directly. Those are manageable only when they are written into the operating contract.

Criterion	Direct-ready evidence	Warning	Next action
Authority	One source owns the decision object and state	Another system silently overwrites or completes it	Map authority before connecting
Grain	Rows and keys match the chart's aggregation contract	Event, contact, order, and day grains are mixed	Pre-aggregate or model upstream
Transformations	Only transparent display calculations are required	Deduplication, lifecycle reconstruction, or mapping lives in charts	Create a governed view or model
History	The source retains the states needed for the decision	Only current values remain	Design snapshots before claiming trends
Freshness	Connector and source latency meet the documented cutoff	Viewers infer real time from an unlabeled report	Expose cutoff and stale state
Access	Durable credentials and least privilege are assigned	A departing employee owns the connection	Repair ownership before launch
Scale and cost	Reviewed query behavior is acceptable for the audience	Every interaction triggers expensive or unstable work	Bound the query, extract, or model
Handoff	A second operator can reproduce and change the path	Logic exists only in one builder's memory	Document before expansion

A simple direct design should still use a reusable data source when several reports need the same field names, types, calculations, and credential behavior. Embedded data sources may be appropriate for a self-contained report, but duplication across reports can create silent definition drift. The decision is not embedded versus reusable in the abstract; it is whether the selected boundary gives the intended owners a controlled place to review and change shared semantics.

Bridge patterns

Extracts and blends solve bounded problems, not unresolved governance

Google describes extracted data as a static snapshot that can be updated on a schedule and documents a maximum extract size of 100 MB. An extract can improve report responsiveness, reduce repeated work against a slower source, freeze a review period, or expose a narrow approved slice. It is a bridge between a live source and a report, not a durable substitute for source authority, historical modeling, or cross-report governance.

An extract needs its own identity: source version, included fields, filters, update schedule, last successful refresh, failure behavior, and retirement rule. Without that metadata, a fast report can quietly become stale. A user may see a plausible number without knowing that the source changed, a scheduled update failed, or an old extract outlived the business definition it was built to represent.

Blends have a different purpose. Data Studio can combine up to five data sources in a blend. A blend is useful for small, explicit comparisons when join keys, cardinality, aggregation order, and unmatched populations are understood. It becomes fragile when it carries reusable business transformations, hides a many-to-many relationship, or forces each report builder to recreate the same logic. Google also advises including only the fields needed because large blends can be slow and can increase processing work.

Pattern	Appropriate use	Required controls	Escalate when
Live direct connector	One governed source, acceptable latency, limited transformation	Credentials, freshness, schema, query, and failure monitoring	Repeated transforms or history are missing
Scheduled extract	Bounded snapshot, faster slice, controlled review period	Source reference, filters, 100 MB boundary, refresh status, and stale-state label	Long-term history or restatement is required
Small report blend	Transparent comparison with stable keys and known cardinality	Join type, grain, pre-aggregation, unmatched rows, and field minimum	Logic must serve several reports or owners
Reusable upstream view	One source needs shared cleaning, mapping, or pre-aggregation	Versioned SQL or model, tests, lineage, and owner	Several systems need durable integration and history
Warehouse model	Cross-source facts, dimensions, history, governance, and reuse	Ingestion, keys, tests, access, cost, orchestration, and runbook	The decision does not justify operational complexity

The safest rule is to keep presentation logic in the report and business-state logic upstream. A ratio between two already-governed measures may be presentation logic. Deduplicating contacts, choosing the authoritative opportunity state, mapping product identities, handling refunds, or reconstructing a customer's historical segment is business-state logic. If that logic changes what a record means, it should be versioned and tested outside an individual chart.

Governed path

A warehouse is justified by reusable control, not by prestige

Google describes BigQuery as a fully managed data platform with warehouse capabilities. For this decision, the important feature is not the product label. It is the ability to create a durable boundary where ingestion, source preservation, transformations, history, access, tests, and reusable reporting views can be owned independently of any single Data Studio report.

A warehouse path commonly separates raw or source-aligned records from cleaned staging models and governed reporting views. Raw layers preserve source identifiers, load timestamps, and source state. Staging layers normalize types and field names without inventing business meaning. Governed models define facts, dimensions, effective dates, deduplication, mappings, and measures. Data Studio then connects to a narrow view whose grain and permitted fields match the report contract.

BigQuery scheduled queries can support recurring transformations, while authorized views can expose selected query results without granting direct access to every underlying dataset. Resource hierarchy and project design can separate central warehouse responsibilities from team-specific data marts or reporting access. These capabilities are useful only when owners, tests, cost controls, and incident handling are defined. A warehouse with undocumented SQL and a personal service dependency is not more governed than a direct connector.

Layer	Responsibility	Minimum evidence	Failure to avoid
Ingestion	Bring approved source records into a controlled environment	Source, cursor, load time, retry, deletion, and completeness logs	Missing records presented as zero activity
Source-aligned storage	Preserve native keys and reviewable source state	Schema version, source timestamps, and immutable load evidence where appropriate	Overwriting the only evidence during cleaning
Staging	Normalize types, names, and safe technical defects	Versioned transformations and tests	Business policy hidden as technical cleanup
Facts and dimensions	Define reusable grain, relationships, history, and business state	Primary keys, relationship tests, effective dates, and definitions	Fact multiplication or current-state history
Governed reporting view	Expose only approved fields and metrics for the decision	View contract, lineage, access, and freshness metadata	Giving reports unrestricted raw access
Data Studio data source	Map fields, credentials, and presentation-ready calculations	Connection owner, schema mapping, and report dependencies	Rebuilding warehouse logic in charts
Operations	Monitor freshness, quality, cost, incidents, and changes	Runbook, alerts, owners, review dates, and retirement path	A reliable-looking report with no support path

The warehouse should reduce the number of places where a definition can drift. If every dashboard still carries its own deduplication, mapping, and filters, the extra platform has not solved the governance problem. The target is a small number of well-owned reporting contracts, not the largest possible data stack.

Semantic control

Grain and join cardinality decide whether totals survive the architecture

Grain is the meaning of one row. A transaction fact may be once per payment. An order table may be once per order while its line table is once per product line. A CRM opportunity may have several contacts and several campaign relationships. Joining these records before declaring the target grain can multiply values while every individual row still looks valid.

The safest sequence is to declare each source's native grain, identify stable keys, pre-aggregate facts to the comparison grain when appropriate, and preserve unmatched populations. A left join does not make a model safe by itself. Join type controls row retention; cardinality controls whether rows multiply. Both must be tested with representative records and aggregate controls.

Example object	Possible native grain	Common key	Primary risk	Control
Analytics event	One emitted event	Event and user/session identifiers	Repeated events or modeled identity	Define event eligibility and deduplication
CRM contact	One current contact record	Contact ID	Merges, duplicates, and overwritten history	Preserve merge and historical rules
Opportunity	One opportunity or deal	Opportunity ID	Several contacts or campaigns	Use explicit relationship bridge grain
Order	One order	Order ID	Refunds, edits, and line expansion	Separate order and line facts
Payment	One financial transaction	Transaction ID	Retries, partial refunds, and currency	Model transaction state and amount rules
Daily snapshot	One object per effective date	Object ID plus snapshot date	Duplicate loads and late corrections	Enforce composite uniqueness and restatement
Campaign cost	One campaign per platform-date	Platform, account, campaign, date	Name changes and currency mismatch	Join on stable IDs and normalized currency

Relationship	Expected result	Required test	Unsafe symptom	Preferred response
One to one	At most one matching record on each side	Uniqueness and null-key checks	Several matches for a supposedly unique ID	Repair duplicate authority before joining
Many to one	Several facts map to one dimension	Dimension-key uniqueness and unmatched count	Dimension duplicates multiply facts	Resolve effective record or valid history
One to many	One parent intentionally expands to children	Aggregate at child grain and restate metric meaning	Parent amount repeats on every child	Separate parent and child measures
Many to many	Explicit bridge allocates or associates relationships	Bridge uniqueness, validity, allocation, and unmatched tests	Cartesian multiplication hidden by a chart aggregate	Model the bridge upstream
Temporal relationship	Record maps to the version valid at event time	Effective-start and effective-end boundary tests	Old facts inherit today's category or owner	Use versioned dimensions or snapshots
No approved match	Record remains visibly unmatched	Reason code and count by source	Rows disappear to improve agreement	Preserve and own the exception population

A Data Studio blend can be appropriate when these relationships are simple and bounded. When the same bridge, temporal logic, or allocation must serve several reports, upstream modeling is safer. The difference is not that SQL is automatically correct. The difference is that a versioned model can be tested once, reviewed independently, and reused without copying hidden report configuration.

Time behavior

Separate source occurrence, ingestion, processing, refresh, and display time

“Updated today” is incomplete. A record can occur in the source, arrive through an API or export later, be transformed on another schedule, remain in a connector cache, and finally appear after a report query. A usable freshness contract names each relevant clock and tells viewers what happens when one stage fails.

Google documents connector-specific data-freshness behavior in Data Studio. Cached results can reduce repeated source work, while a refresh can cause new queries. For BigQuery-connected reports, query behavior can create usage cost, so freshness should be chosen for the decision rather than maximized by habit. A report used for a weekly operating meeting does not necessarily need continuous refresh; a support exception queue may need a much tighter and observable cutoff.

History is separate from freshness. A source can be fresh but contain only current state. If a CRM contact's owner, segment, or lifecycle stage is overwritten, querying today's row cannot reconstruct last month's state. Historical reporting requires source events, audit history, effective-dated dimensions, snapshots, or another agreed record of change. An extract may preserve one snapshot, but a repeatable historical model needs explicit retention, effective time, late-arrival, and restatement rules.

Time control	Definition	Viewer evidence	Failure behavior
Occurrence time	When the business event happened	Named event field and timezone	Do not replace it with load time
Source update time	When the source record last changed	Source timestamp and mutable-field rule	Flag sources without reliable change metadata
Ingestion time	When the reporting layer received the record	Load ID, cursor, and completion time	Expose incomplete or failed loads
Transformation cutoff	Latest inputs included in the governed model	Run version and source watermarks	Keep prior accepted version or label partial data
Connector freshness	When Data Studio may request or reuse results	Configured interval and connector behavior	Show stale state rather than silent confidence
Report display time	When a viewer loaded the result	Visible generated-at and data-through labels	Do not imply data time from browser time
Restatement	How late or corrected records alter closed periods	Reason, prior value, new value, owner, and date	Do not silently rewrite consequential history
Retention	How long source, snapshot, and evidence rows remain	Approved schedule and deletion behavior	Hold claims that outlive available evidence

Credentials and operations

Credentials, permissions, query cost, and revocation are architecture

Data Studio data credentials determine whose authorization is used to access underlying data. Google documents owner credentials, viewer credentials, and service account credentials for supported contexts. The correct mode depends on whether viewers should inherit one governed access path or must use their own source permissions. The choice affects reach, security, support, and what happens when an owner leaves.

A durable design avoids a personal login as the undocumented production boundary. It assigns the minimum source permissions needed, names the credential owner, records who can edit the data source and report, and tests revocation. When BigQuery is used, the design also identifies the billing project or account context, query patterns, refresh behavior, and a person accountable for cost review. Connecting Data Studio to a table, view, or custom query is technically straightforward; operating that query responsibly is a separate requirement.

Consent and lawful-use decisions belong to accountable privacy and business owners. A reporting architecture should minimize fields, separate direct identifiers from reporting keys where appropriate, restrict tenant and audience boundaries, and document retention and deletion behavior. This guide does not prove privacy compliance, production readiness, or permanent platform behavior.

Control	Decision	Evidence	Hold condition
Credential mode	Owner, viewer, or supported service account behavior	Approved rationale and tested viewer path	Access is broader than the report purpose
Source permission	Minimum datasets, tables, views, or application scope	Role inventory and access test	Broad administrative access is required without reason
Report editing	Who can change fields, filters, sources, and sharing?	Named editors and change approval	Every viewer can alter the reporting contract
Tenant boundary	Which company, workspace, property, or account is included?	Explicit source references and isolation test	Cross-tenant rows can appear
Field minimization	Which fields are necessary for the decision?	Allowlist and excluded sensitive fields	Raw personal data is exposed without need
Query cost	Who owns usage and reviews expensive patterns?	Billing context, query boundary, and review cadence	No one can explain or stop cost growth
Revocation	What happens when an owner, vendor, or service changes?	Tested disable, transfer, and recovery procedure	The report cannot operate without one person
Incident response	Who handles stale, missing, overexposed, or incorrect data?	Alert, containment, owner, and communication path	Viewers cannot distinguish failure from zero

Smallest reliable architecture

Escalate one control at a time instead of jumping to the largest stack

The decision is not a permanent binary. A reporting path can mature as its decision, audience, and evidence burden grow. Start by proving whether the source is reporting-ready. If it is not, add the smallest missing control: a reusable data source, a bounded extract, an upstream view, a scheduled model, or a governed warehouse layer. Each escalation should remove a named failure mode and have an owner.

Avoid arbitrary rules such as “use a warehouse after a certain number of sources.” Source count is only a clue. More important signals are incompatible grains, repeated business transformations, historical reconstruction, cross-source identity, many-to-many relationships, permission isolation, reusable definitions, late-arriving data, restatement, and independent operating teams.

Current state	Observed limitation	Smallest next control	Acceptance evidence	Do not claim
Direct embedded source	Shared fields drift across reports	Reusable governed data source	Same field contract in each dependent report	Central governance without an owner
Live connector	Bounded slice is slow or source-sensitive	Controlled extract	Refresh, size, stale state, and source reconciliation	Historical warehouse behavior
Report calculation	Business mapping is copied or hard to review	Versioned upstream view	Tests, lineage, definition, and owner	That SQL alone creates authority
Small blend	Repeated joins or cardinality risk	Pre-aggregated governed model	Key, unmatched, multiplication, and total controls	Safe joins without row-level tests
Current-state source	Prior state must be reproduced	Snapshots or effective-dated history	Boundary, late-arrival, and restatement fixtures	Historical truth from today's row
Several source models	Definitions and identity must serve many reports	Governed warehouse or semantic reporting layer	Reusable facts, dimensions, access, tests, and runbook	Automatic quality from platform choice
Warehouse model	Decision is simple and no longer needs the layer	Documented simplification or retirement	Parity, dependency, rollback, and owner signoff	That complexity must be permanent

Migration should preserve a comparison period. Do not replace a source in a report and assume matching field names preserve meaning. Google warns that editing or reconnecting a data source can add or remove fields and can break calculated fields. Replacing a data source also requires compatible field mapping and review of affected components. Freeze the old version, map fields by meaning and type, test representative pages and filters, reconcile totals and exceptions, and keep a rollback path until the new contract is accepted.

Acceptance evidence

Reconcile source rows, transformations, and report behavior before launch

A report is not accepted because its total looks familiar. Start with a small fixture set that exercises ordinary, duplicate, unmatched, late, null, corrected, unauthorized, and boundary cases. Preserve native source evidence, expected transformation output, and the expected chart result. When a difference appears, classify the first divergent layer instead of changing filters until the headline number agrees.

Reconciliation should operate at several grains. Row-level fixtures prove keys and logic. Aggregate controls prove completeness and detect multiplication. Time controls prove cutoffs and late-arriving behavior. Permission tests prove the intended audience. Failure tests prove that stale or incomplete data is visible. Handoff tests prove that another operator can repeat the process.

Fixture	What it proves	Expected evidence	Failure signal
Ordinary row	Happy-path source-to-chart lineage	Same key, state, amount, date, and classification	Unexplained mapping or value change
Duplicate-risk row	Uniqueness and deduplication	One governed outcome with preserved reason	Double-counted fact or silent deletion
Unmatched row	Join retention and exception visibility	Unmatched reason and owner	Record disappears from every control
Late-arriving row	Cutoff and restatement	Expected period, arrival time, and revision behavior	Silent change to a closed period
Null or unknown row	Missing-data semantics	Explicit unknown state separate from zero	Blank becomes false, zero, or excluded
Corrected row	Update, snapshot, and audit behavior	Prior and current values under the contract	History is overwritten without trace
Unauthorized viewer	Credential and audience boundary	No access beyond approved fields and tenant	Data appears through owner credentials unexpectedly
Failed refresh	Operational visibility	Stale or partial state is labeled and owned	Old data looks current

Reason code	First divergent layer	Example	Response
CONTRACT	Metric or decision definition	Two totals use different revenue meaning	Resolve authority before technical changes
SOURCE	Native record or field	Expected source row never existed	Investigate source ownership and capture
INGEST	Extraction or load	Cursor skipped a source interval	Recover idempotently and reconcile completeness
TRANSFORM	Cleaning or business rule	Mapping version classifies a value incorrectly	Fix, test, version, and restate by policy
JOIN	Key, cardinality, or unmatched behavior	Dimension duplicates multiply order amount	Repair relationship model upstream
TIME	Timezone, cutoff, late arrival, or snapshot	Record belongs to another reporting day	Apply declared time and restatement rule
CONNECTOR	Schema, freshness, cache, or query behavior	Data source did not request current results	Review documented connector configuration
REPORT	Filter, field mapping, aggregation, or control	Page filter excludes an eligible segment	Repair report and rerun fixtures
ACCESS	Credential or permission	Viewer sees a different population	Repair credential design and retest audience
EXPECTED	Documented semantic difference	Live source includes a later cutoff than a snapshot	Label and retain the accepted difference
UNKNOWN	Not yet evidenced	Total differs without traceable row cause	Hold consequential use and assign investigation

The Proof page shows how eArif.com separates evidence, scope, and limitations without fabricating outcomes. For a live report whose totals already conflict, move to the discrepancy checklist rather than rebuilding the architecture from a visual symptom.

Browser-local template

Download a blank connector-versus-warehouse decision contract

The CSV records the decision, source and grain, direct path, transformations and joins, history and freshness, credentials and cost, acceptance evidence, and handoff. It contains no customer data and does not inspect your browser or accounts. Fill it only with approved references; do not place passwords, access tokens, private contact details, payment data, or raw identifiers in the file.

Nothing is uploaded. The file is generated in this browser.

Field group	What to record	Why it matters	Do not include
Decision	Question, action, owner, audience, cadence, materiality, and version	Prevents technology-led scope drift	Unsupported outcome claims
Metric and grain	Formula, unit, denominator, exclusions, object, key, and date rule	Creates a testable semantic contract	Ambiguous labels without definitions
Direct path	Connector, data source, fields, schema, freshness, and representative trace	Proves whether the smallest path works	Credentials or secret URLs
Transform and join	Rules, model version, keys, cardinality, unmatched handling, and aggregation order	Prevents hidden row multiplication	Raw personal identifiers
History and freshness	Occurrence, load, cutoff, snapshot, late-arrival, restatement, and retention	Separates current state from historical fact	Unapproved retention commitments
Access and cost	Credential mode, least privilege, tenant, editor, billing context, and revocation	Makes operation durable and bounded	Passwords, tokens, API keys, or card data
Acceptance	Fixture, source value, expected model value, report value, reason code, and owner	Preserves reproducible evidence	Private customer records
Handoff	Runbook, alerts, change owner, signoff, review, rollback, and retirement	Prevents an orphaned report	Promises beyond approved scope

32 browser-local checks

Complete the architecture review before consequential use

The checklist stores progress in this browser only. It does not upload answers or inspect any source. Completion means the review record is ready for accountable human acceptance; it does not guarantee correctness, availability, security, privacy, cost, ranking, traffic, AI citation, leads, or revenue.

Implementation paths

Choose the route that matches the first unresolved control

Do not purchase a build before the report contract is stable enough to scope. A direct dashboard setup, export-based starter, CRM-to-Sheets workflow, broader reporting implementation, consultation, and cross-system audit solve different problems. The table below keeps the informational decision connected to one relevant commercial next step without turning every reader into the same sales route.

First unresolved need	Route	Expected output	Input needed first
Architecture, metrics, access, or freshness is uncertain	Data Studio consultation	Decision and implementation scope	Privacy-safe goals, sources, audience, and symptom
One approved Data Studio build remains	Dashboard setup	Scoped report and handoff	Approved metrics, fields, access, and acceptance criteria
Several sources need governed reporting implementation	Reporting Dashboard Services	Source, model, dashboard, QA, and documentation scope	Authority and permitted data boundaries
Keap exports can support a bounded starter	Keap export dashboard starter	Reviewable export-based starter without a live-API claim	Approved export, definitions, duplicate, and date rules
One CRM-to-Sheets reporting handoff is required	CRM to Google Sheets reporting automation	One agreed field and update workflow	Source fields, grain, schedule, and ownership
Several systems dispute authority or handoffs	Systems Audit	Cross-tool source, owner, failure, and remediation map	Expected journey and privacy-safe evidence
Existing dashboard numbers already disagree	Discrepancy checklist	First-divergence diagnostic path	Named reports, period, metric, and visible symptom
Scope remains uncertain after the review	Contact Arif	Privacy-safe routing to the appropriate next step	No credentials or private customer records

Official documentation

Verify connector and warehouse behavior against the current implementation

Platform behavior, limits, interfaces, access modes, and costs can change. Review the documentation current to the connector, source, account, region, and implementation version. The sources below support the platform-specific statements in this guide; the architecture recommendations are Arifur Rahman's synthesis for making the decision reviewable.

Google Cloud: Welcome to Data Studio - current product name and reporting-platform overview.
Google Cloud: Data Studio release notes - dated product updates, including the April 2026 name change.
Google Cloud: About data sources in Data Studio - data-source, connector, credential, embedded, reusable, live, and extract concepts.
Google Cloud: Connector definition - the connector's role in linking Data Studio to data.
Google Cloud: Manage data freshness - connector-specific freshness and query behavior.
Google Cloud: Extract data for faster performance - static snapshot, scheduled update, and documented size boundary.
Google Cloud: How blends work in Data Studio - blend structure and supported data-source count.
Google Cloud: Blending tips and advanced concepts - field selection, processing, and advanced blend behavior.
Google Cloud: Connect to Google BigQuery - table, view, custom query, billing, and usage considerations.
Google Cloud: Data credentials - owner, viewer, and supported service-account modes.
Google Cloud: Edit a data-source connection - field changes and calculated-field risk during reconnection.
Google Cloud: Replace a data source - controlled source replacement at component, page, or report scope.
Google Cloud: BigQuery introduction - managed data-platform and warehouse capabilities.
Google Cloud: Schedule queries - recurring query execution for governed transformations.
Google Cloud: Authorized views - controlled query-result access without broad source-table access.
Google Cloud: BigQuery resource hierarchy - organization, folder, project, and dataset governance context.
Google Analytics Help: Set up BigQuery Export - linking a GA4 property and BigQuery project.
Google Analytics Help: BigQuery Export schema - exported event and user-data schema context.

Frequently asked questions

Data Studio connector and data warehouse questions

When is a direct Data Studio connector enough?

A direct connector is enough when one governed source already provides the authoritative records, correct row grain, required fields, acceptable history, documented freshness, durable credentials, and reviewable query behavior for the decision. Keep reusable business transformations upstream and prove representative source rows through the data source and chart before launch.

When should Data Studio use a data warehouse?

Use a governed warehouse or modeled layer when several reports repeatedly need the same cross-source joins, deduplication, mappings, historical snapshots, effective-dated dimensions, restatement rules, access isolation, reusable metrics, lineage, or independent operations. The warehouse must have owners, tests, cost controls, monitoring, and a handoff; the platform alone does not create governance.

Is a Data Studio extract a replacement for a data warehouse?

No. An extract is a bounded static snapshot that can be refreshed and can improve responsiveness or isolate an approved reporting slice. It does not automatically provide durable ingestion, long-term history, cross-report transformations, tested joins, restatement, or warehouse governance. Record its source, filters, fields, size, refresh, stale-state, and retirement rules.

Can Data Studio blends replace warehouse joins?

Blends can support small, transparent comparisons when source grains, stable keys, join types, cardinality, pre-aggregation, and unmatched rows are understood. Move the relationship upstream when it is many-to-many, temporal, reused across reports, performance-sensitive, security-sensitive, or responsible for business-state logic. A visual match does not prove that joined facts were not multiplied.

Does a BigQuery connection make a Data Studio report accurate?

No. BigQuery can provide managed storage, SQL transformations, scheduled queries, authorized views, and governed reporting models, but accuracy still depends on source completeness, metric definitions, keys, grain, joins, history, time rules, tests, permissions, and accountable ownership. Reconcile representative rows and totals rather than treating the platform choice as evidence.

How do I migrate a direct Data Studio report to a warehouse?

Freeze the current report and source contract; build a governed view at the same declared grain; map fields by meaning, type, date, and aggregation; preserve unmatched and historical behavior; test calculations, filters, controls, blends, permissions, and failure states; run a controlled comparison period; reconcile differences with reason codes; and retain a rollback path until an accountable owner accepts the new version.

Data Studio (Formerly Looker Studio): Connector vs Data Warehouse
