WooCommerce Order Status to CRM Workflow Map

Intent and ownership

This guide owns the status-to-CRM contract, not every WooCommerce automation

This guide owns one informational task: design and accept a vendor-neutral WooCommerce order-status-to-CRM state machine. It explains the source event, state fields, contact and order identity, default status meanings, controlled downstream actions, retries, duplicate prevention, exceptions, testing, reconciliation, and operating handoff. It does not connect a production store, recommend one CRM for every business, certify payment or tax treatment, or promise that an extension behaves exactly like core WooCommerce.

Use WooCommerce To CRM Automation Map when the needed outcome is the existing ECOM-079 paid roadmap: a source-to-target or current-to-future map for the agreed WooCommerce and CRM scope. That commercial page retains its `$297 Roadmap only` offer, 5-7 business-day target, request route, included deliverables, and exclusions. This article gives readers a rigorous method for understanding the problem before requesting that roadmap; it does not replace the paid owner.

Use WooCommerce to LearnDash Access After Purchase when course enrollment is the actual handoff. Use Failed Payment Automation for Memberships when subscription or membership recovery is the buyer problem. Use Webhook Retries, Duplicate Events, and Idempotency for deeper transport and effect-deduplication design, and Website Form to CRM Automation Checklist for lead-capture intent.

WooCommerce core, payment gateways, checkout blocks, subscription extensions, order-status extensions, connectors, CRM objects, and custom code can change. Confirm current official documentation, extension versions, live configuration, gateway behavior, and privacy requirements before production work. This is implementation guidance, not WooCommerce support, vendor affiliation, legal advice, accounting advice, tax advice, or a guarantee of production safety.

User task	Canonical route	Owned outcome	Not owned
Understand and test a status-to-CRM state machine	This guide	Informational contract, mappings, exceptions, QA, and reconciliation	A production integration or custom implementation
Receive a scoped source-to-target roadmap	ECOM-079 roadmap	Paid WooCommerce-to-CRM mapping under the listed scope	Hands-on implementation or open-ended migration
Repair transport, authentication, or webhook delivery	API and Webhook Audit	Focused live delivery diagnosis	Business-policy ownership across every connected system
Find the first conflicting cross-tool owner	Systems Audit	Evidence-led diagnosis across payment, commerce, CRM, access, and reporting	A routine known single-workflow map

Stage 1: event and state contract

Define what happened, what state is authoritative, and which effects are allowed

Start with a contract, not a connector screen. Name the WooCommerce store, the order system of record, the CRM, the integration layer, the affected order types, the source event, the readback method, the intended records, the allowed actions, and the recovery owner. A connector label such as "Order updated" is not a business event definition. WooCommerce's official Zapier integration documents that Order updated also fires when an order is first created, when a status changes, and when an order is refunded.

Define the event envelope separately from the current resource. The envelope records why the integration woke up: store, source topic, delivery or task ID when available, order ID, previous status, observed status, event time, received time, attempt, and payload hash. The resource readback records what WooCommerce says now: current status, paid date, completed date, totals, refunds, customer, products, payment method, transaction reference, and modified time. This distinction protects the workflow when a queued event arrives after the order has already moved again.

Name every side effect and its gate. Updating an order mirror, adding a CRM note, creating a deal, sending a payment reminder, alerting fulfillment, granting access, and suppressing a campaign are different effects. Each needs a stable idempotency key, evidence requirement, retry rule, reversal policy, and accountable owner. A single "sync succeeded" flag cannot prove that all effects completed exactly once.

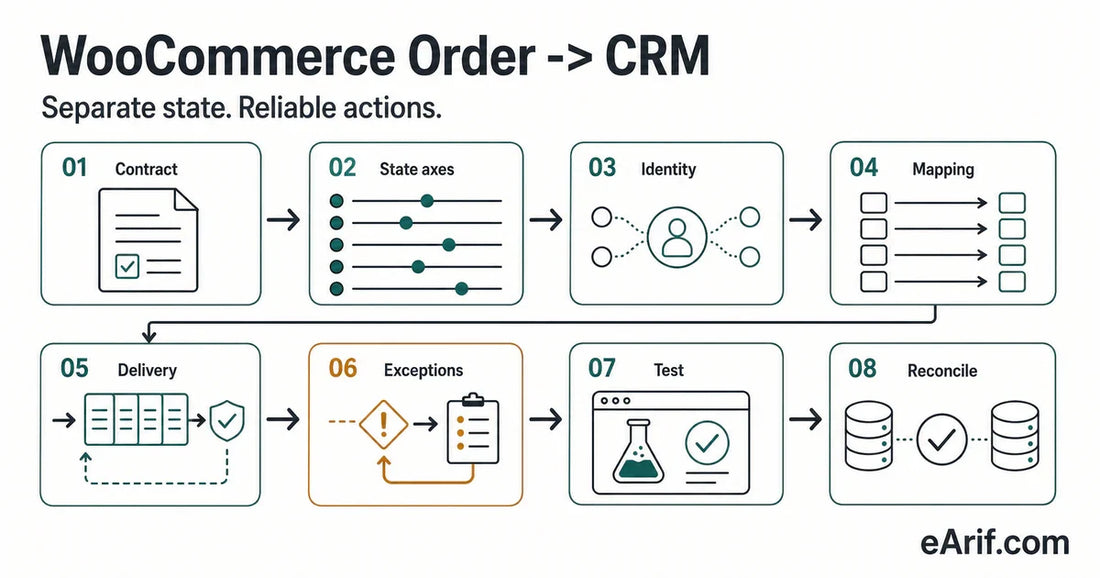

01Contract
02State axes
03Identity
04Mapping
05Delivery
06Exceptions
07Test
08Reconcile

Crawlable workflow equivalent for the article visual: contract, separate state axes, identity, mapping, reliable delivery, exceptions, testing, and reconciliation.

Contract layer	Required decision	Minimum evidence	Hold condition
Source	Store, environment, order types, extension versions, authoritative order interface	Versioned inventory and privacy-safe sample orders	The same order can be written by unidentified systems
Trigger	Created, paid, any-status change, specific status, updated, refund, poll, or replay	Exact trigger rule and observed sample payload	The trigger label is treated as a guarantee without a test
Current state	Whether processing uses the event payload, a current API read, or both	Order ID, status, dates, totals, refunds, notes, and modified time	A delayed event can overwrite a newer state
Effects	Record updates, tasks, messages, access, fulfillment, reporting, and exclusions	One gate and idempotency key per effect	One retry can repeat customer-facing actions
Recovery	Retry, replay, reconcile, compensate, hold, or manual review	Queue/log location, owner, time limit, and close criteria	No one can explain or safely replay a failed transition

Stage 2: separate state axes

Do not collapse payment, order, fulfillment, refund, and customer lifecycle into one field

WooCommerce order status describes where an order sits in the store's order process. It is not the same as a gateway's authorization or capture state, warehouse fulfillment, a partial refund, a subscription state, membership access, or a CRM contact lifecycle. The official WooCommerce Zapier documentation explicitly says that paid state is not directly tied to one exact order status. Processing and Completed often correspond to paid orders, but custom behavior and payment methods can change that relationship.

Keep at least five state axes. First, payment state: unpaid, awaiting confirmation, authorized, captured, partially refunded, fully refunded, disputed, or unknown under the verified gateway vocabulary. Second, WooCommerce order status: the exact core or custom slug and label. Third, fulfillment state: not ready, ready, in progress, shipped, fulfilled, returned, or an approved business-specific vocabulary. Fourth, commercial adjustment state: refund records, refund amount, currency, reason category, and whether the money movement was automatic or manual. Fifth, CRM relationship state: lead, customer, active client, churned, or another defined contact-level lifecycle supported by broader evidence.

Course access, membership entitlement, subscriptions, and service delivery are additional axes when present. The same contact can have a failed order, a completed order, and a refunded order at the same time. Setting that contact to "Failed" because one order failed destroys the history needed for service, attribution, support, and future purchases.

WooCommerce state	Core meaning to preserve	Separate evidence required	Unsafe shortcut
Draft	Block checkout can create an incomplete order before submission	Checkout submission, customer consent, expiration, and final order existence	Create a sales deal or customer record for every draft
Pending payment	The order was received but payment is not confirmed	Gateway session, payment link, expiry, and latest order note	Mark revenue won or begin fulfillment
On hold	Payment confirmation is pending; stock may be reduced	Offline method, delayed notification, authorization/capture, and reviewer	Treat every hold as payment failure or success
Processing	Payment is normally received and fulfillment remains	Paid date, transaction evidence, product type, and fulfillment owner	Call the order completed or overwrite the contact lifecycle
Completed	The order is fulfilled and complete	Completion time, shipment/service evidence, and prior paid evidence	Send a first-payment message again when completion is later
Failed	Payment failed or was declined and no successful payment is recorded	Gateway result, retry eligibility, replacement order, and customer messaging policy	Mark the person lost or suppress all future communication
Cancelled	The order was cancelled by the customer, administrator, or process	Cancellation actor, prior payment, refund need, stock, and replacement order	Assume cancellation returned money automatically
Refunded	The full order value was recorded as refunded	Refund records, amount, gateway result, manual-payment evidence, and fulfillment/access effects	Use this status to detect every partial refund
Custom status	The extension or store defines its meaning	Slug, paid/requires-payment behavior, allowed transitions, emails, analytics, and owner	Infer financial meaning from a friendly label

Stage 3: identity and record ownership

Keep one customer identity and many immutable order identities

The CRM contact represents a person or approved business identity. A WooCommerce order represents one commercial transaction. A deal, opportunity, custom order object, invoice mirror, or transaction record can represent that order inside the CRM, but it should keep the WooCommerce store and internal order ID as its durable external key. Display order numbers can be customized by extensions; store ID plus WooCommerce order ID is the safer technical identity unless the selected connector documents another stable contract.

WooCommerce's REST order schema records `customer_id` as `0` for guest orders. That means a WordPress user ID cannot be the only cross-system contact key. Use an approved contact-resolution policy: normalize the billing email for exact lookup, preserve the original order email, consider a verified CRM external ID for known accounts, and route ambiguous matches to review. Do not merge people automatically on name, phone fragment, postal address, or a shared company inbox without a documented business rule.

Use an upsert pattern for the order mirror: create or update the CRM order record by stable order key, then relate it to the resolved contact. Keep products and line items at the appropriate grain for the CRM and reporting need. Do not append a new tag for every transient status when a current-state field plus transition history is clearer. Preserve the event ledger or activity note separately from the current order fields.

Entity or record	Recommended durable identity	Fields it owns	It must not overwrite
CRM contact	CRM contact ID plus approved email/external-account aliases	Person identity, consent evidence, relationship owner, broad lifecycle	One order's transient status as the person's entire lifecycle
WooCommerce order	Store identity plus internal WooCommerce order ID	Current order status, totals, currency, products, customer, dates, notes	CRM-only sales notes or manually approved service context
CRM order/deal mirror	Store plus WooCommerce order ID in a unique external-key field	Mirrored order facts, sync status, source timestamps, relationship links	Unrelated opportunities or another store's order with the same number
Payment/refund event	Gateway/event identity when available plus order and amount context	Authorization, capture, failure, refund, dispute, amount, currency, time	The whole order state without a current WooCommerce readback
Integration ledger	Source, event/delivery identity, effect name, and target record	Attempts, payload hash, observed state, result, error, replay, timestamps	Secrets, full payment data, or uncontrolled private payload archives
Exception case	Stable case ID related to contact, order, event, and owner	Contradiction, evidence, customer impact, decision, due time, resolution	The authoritative order merely to make the dashboard look consistent

Stage 4: status and action mapping

Map status to facts first, then gate each CRM action separately

A safe mapping has two layers. The first mirrors facts: current status, previous status, paid date, completed date, refund totals, transaction reference, order total, currency, product summary, payment method, order URL for authorized staff, and the source-modified timestamp. The second evaluates business actions from those facts plus policy. This prevents a label change from automatically sending a message, declaring revenue, granting access, creating a duplicate deal, or cancelling service.

Use transition rules rather than state-only rules for one-time effects. "First verified transition from not-paid to paid" is a stronger gate for a receipt handoff than "current status is Processing." "First verified transition to Completed with fulfillment evidence" is a stronger gate for a delivery follow-up than "order updated." If an effect must occur once per order, its key can include store, order ID, effect name, and policy version. If it can occur once per refund, include the refund identity or approved amount-and-time key.

Keep reversible CRM facts separate from irreversible customer-facing actions. It is normally safe to update a mirror field again with a newer authoritative timestamp. It is not normally safe to resend a welcome message, issue a benefit, create a task, remove access, or notify a partner every time a connector retries.

Observed transition	CRM fact update	Possible controlled action	Required gate
Created or Draft	Record only under an approved incomplete-checkout policy	Normally none; separate consented abandonment flow when appropriate	Submitted identity, consent, expiration, dedupe, and legal review as applicable
Pending payment	Order exists; payment unresolved	Payment-link task or reminder under an approved recovery policy	Still unpaid, not expired, not replaced, frequency cap, and valid contact permission
On hold	Awaiting payment confirmation or manual review	Internal review task; customer update only under the selected method policy	Payment method, latest notes, owner, due time, and no later paid state
First verified paid state	Paid date, amount, transaction evidence, and current order state	Create/update order opportunity, receipt handoff, fulfillment-ready signal	Paid evidence, stable order identity, effect not previously completed
Processing	Normally paid and awaiting fulfillment	Fulfillment task or service-delivery queue	Product path, fulfillment owner, no cancellation/refund contradiction
Completed	Fulfillment complete with completion time	Delivery follow-up, review request, onboarding milestone, or close order record	Completion is real, timing policy passes, effect not already sent
Failed	Payment attempt failed; order remains distinct from the contact	Recovery message, internal task, or suppression of this order's fulfillment	No later success, replacement-order check, frequency/consent rules, reason safe to expose
Cancelled	Cancellation actor, time, prior payment, and refund-needed flag	Stop this order's open work, route refund review, or close recovery	Cancellation source, customer-impact review, later replacement, financial evidence
Full or partial refund	Refund identity, amount, currency, items, method, and resulting order state	Finance task, service/access review, customer message, reporting adjustment	Verified refund record, full-versus-partial policy, manual-money confirmation

Stage 5: reliable event processing

Expect asynchronous delivery, duplicate observations, retries, and later state

WooCommerce integrations can deliver asynchronously so checkout is not delayed. The official WooCommerce Zapier documentation says a typical delay can be ten seconds to one minute and can be longer on low-traffic or test sites. It also documents that if a resource changes between scheduling and sending, the later status can be delivered, and any-status rules can produce the same current data more than once. Design from that behavior instead of assuming a perfectly ordered event stream.

WooCommerce webhooks have their own delivery state and logs. Current developer documentation says a webhook can become disabled after five unsuccessful deliveries by default and that logs are available under WooCommerce Status. Action Scheduler provides a separate traceable queue surface where actions can be pending, complete, failed, or in progress. A CRM record being stale can therefore result from trigger selection, queue health, webhook delivery, authentication, target validation, CRM rate limits, effect logic, or a missing reconciliation run.

Use a durable intake pattern. Verify the sender according to the selected connector or webhook contract, preserve only necessary privacy-safe evidence, record or claim the event atomically, acknowledge promptly when the platform contract expects it, process effects independently, and mark each effect's result. Before writing a state field, compare authoritative modification time or a stronger source version. Before a customer-facing action, reread the current order when feasible and confirm that no later state invalidates the effect.

Failure pattern	Evidence to inspect	Unsafe response	Controlled recovery
Created and updated both fire	Trigger configuration, order ID, source event, timestamps, existing CRM key	Create two deals or contacts	Upsert by stable order identity and dedupe each effect
Delayed older transition arrives	Event time, received time, payload status, current API state, modified time	Overwrite Completed with Processing	Record the observation, preserve newer state, and process only still-valid effects
Target returns an error	HTTP status, response body, authentication, validation, rate limit, request ID	Retry the entire workflow without effect history	Retry the failed idempotent effect with bounded backoff and ownership
WooCommerce webhook becomes disabled	Webhook status, delivery logs, consecutive failures, endpoint health	Reactivate repeatedly without fixing the cause	Repair endpoint behavior, test a safe delivery, reactivate, then reconcile the gap
Scheduled action fails or stalls	Scheduled Actions status, hook, group, claim, timestamps, and action log	Delete queue history or run every pending task at once	Fix the narrow cause, run a bounded representative action, then drain safely
CRM write succeeds but acknowledgement fails	Target record, request/effect key, response loss, source retry	Create the record again	Read target by external key and return the existing completed effect
One effect succeeds and another fails	Per-effect ledger for mirror, task, message, access, and reporting	Replay successful customer messages with the failed update	Retry only incomplete effects or apply an approved compensation

Stage 6: exceptions and extensions

Model custom statuses, partial refunds, manual money movement, subscriptions, and manual edits

Custom order statuses need a registry. Record the slug, label, extension or code owner, paid behavior, requires-payment behavior, permitted previous and next statuses, customer-visible text, emails, analytics inclusion, webhook coverage, CRM mapping, and recovery route. WooCommerce Order Status Manager documents that a custom status can be configured as paid, requiring payment, or neither. The word "Shipped" or "Approved" does not prove a financial state by itself.

Refunds need their own records. WooCommerce documents that a partial refund does not change the full order to Refunded. It also warns that a manual refund records the refund in WooCommerce but requires the operator to return the customer's money outside WooCommerce. Therefore, the CRM needs refund amount, items, time, method, gateway result, manual-money confirmation, and resulting service or access decision - not only the order status.

Subscription renewals create order events but also have a separate subscription lifecycle. Parent order, renewal order, subscription record, failed renewal, retry schedule, paid-through date, cancellation, and entitlement policy should not be compressed into the latest order status. Route membership recovery to its dedicated owner rather than adding an untested generic rule to the order map.

Manual order changes and REST API updates are real writes. Capture the actor or source when available, add a reason through the approved private record, and decide whether manual changes should trigger normal customer effects. A staff correction from Completed back to Processing may need an internal reconciliation task but not a second purchase confirmation.

Exception	Distinct state to preserve	Decision required	Acceptance evidence
Custom paid status	Custom slug plus paid behavior and fulfillment meaning	Which paid effects run and which wait for later fulfillment	Extension configuration, test transition, dates, and CRM result
Custom requires-payment status	Amount due, payment link eligibility, expiry, and owner	Reminder, task, and cancellation policy	Customer action visibility and successful/expired test paths
Partial refund	Refund record and remaining order value while order status may stay unchanged	Revenue, service, item, access, and customer-message treatment	Refund amount/items plus unchanged or changed order status
Manual refund	WooCommerce record and separate external money-return confirmation	Who confirms the actual payment and closes the finance task	Approved gateway/bank evidence without exposing payment data
Cancelled after payment	Cancellation and refund-needed states separately	Stock, refund, service/access, and messaging sequence	Prior payment, cancellation actor, refund result, customer impact
Subscription renewal order	Subscription ID, renewal order ID, paid-through date, and retry state	Order versus subscription effects and grace-period policy	Parent, renewal, scheduled actions, and entitlement results
Manual or API status edit	Actor/source, previous state, new state, reason, and time	Whether customer effects are suppressed, replayed, or reviewed	Order notes/logs, source request, and CRM activity
Replacement order	Original and replacement IDs with an explicit relationship	Which order owns fulfillment, recovery, revenue, and messaging	No duplicate open deal, message, access grant, or shipment

Stage 7: representative acceptance

Test transitions, duplicates, delays, reversals, and customer-facing effects

A happy-path purchase is not enough. Build a privacy-safe QA set with synthetic customer values and products approved for testing. Cover instant payment, offline or delayed confirmation when used, failed payment, cancellation, processing-to-completed fulfillment, partial refund, full refund, custom status, guest checkout, returning customer, duplicate delivery, delayed delivery, target failure, and replay. Use a development or staging environment where it is representative; otherwise use a tightly bounded production plan with owner approval and no real customer data.

Capture expected WooCommerce state, source event, current API readback, CRM contact, CRM order/deal, effect ledger, message/task/access result, and final reconciliation for each case. Test the first attempt and the retry. A workflow that passes once but creates a second task, email, deal, or access grant on replay has not passed.

Include negative assertions. A Pending order must not count as verified revenue. A failed order must not change the entire contact to lost. A partial refund must not look like a full refund. A delayed Processing event must not replace a current Completed mirror. A custom unpaid status must not run paid effects. A reprocessed Completed event must not send a second completion message.

Test case	Expected WooCommerce evidence	Expected CRM result	Replay or failure assertion
Instant paid physical order	Paid evidence, Processing, products, totals, and fulfillment pending	One contact, one order record, one paid effect, fulfillment-ready state	A duplicate event updates facts but repeats no one-time effect
Virtual/downloadable paid order	Paid order may move directly to Completed under the configured behavior	Paid and completed facts both recorded without duplicate purchase effects	Trigger order does not determine message duplication
Offline or delayed payment	Pending or On hold, then verified later transition	No paid effect before confirmation; one effect after approved evidence	Order paid trigger limitations do not leave the order permanently stale
Failed then successful retry	Failed attempt followed by paid state on same or replacement order	History preserved; recovery closes; one final successful order outcome	Late failure cannot overwrite later success
Cancellation before and after payment	Cancellation actor, prior paid state, stock, and refund need differ	Order closed with correct finance/service task; contact remains valid	No assumption that cancellation itself returned money
Partial then full refund	Separate refund records; status may remain until full value is refunded	Amounts accumulate correctly; full-refund effects run only at the approved boundary	Each refund is idempotent and prior effects are not repeated
Guest and returning buyer	Guest customer ID can be zero; billing identity and order remain available	Approved contact resolution relates both orders without unsafe merge	Same display name or phone fragment cannot create a merge
Delayed older event	Payload status is older than current authoritative order state	Observation logged; current CRM state remains newer	No stale field write or invalid customer action
CRM outage then replay	Source order remains correct; event/effect shows failed attempt	Bounded retry or replay completes only missing effects	No duplicate contact, order, task, message, or access change
Custom status transition	Configured slug and paid/requires-payment meaning are observed	Only the registered fact and effect mapping executes	Unknown custom status routes to review instead of a guessed action

Stage 8: reconciliation and operation

Compare the source and target on a schedule, then repair the smallest failed layer

Event delivery is not reconciliation. Schedule a bounded comparison of WooCommerce and CRM order records by store, order ID, modified range, status, paid date, completed date, totals, currency, refund totals, contact relationship, and last successful sync. Use supported WooCommerce APIs rather than direct database assumptions. WooCommerce recommends `wc_get_orders()` and `WC_Order_Query` for extension code and documents HPOS as the default storage direction for new stores, with dedicated authoritative order tables.

Classify every variance before repair: source-only order, target-only record, status mismatch, stale timestamp, payment mismatch, refund mismatch, wrong contact, duplicate target, missing effect, repeated effect, unknown custom status, or privacy/permission issue. Repair at the narrowest layer. A stale mirror may need a safe upsert; a missing customer message may need one effect replay; a disabled webhook needs delivery repair plus gap reconciliation; a wrong mapping may require a policy correction before any backfill.

Monitor both system health and buyer impact. Useful measures include event intake lag, processing lag, oldest pending effect, failed actions by cause, webhook status, source-to-target mismatch count, duplicate target count, paid orders without CRM records, refunds without finance/service decisions, repeated customer effects, unresolved exceptions, and reconciliation age. Keep alerts actionable, with severity, owner, due time, and evidence location.

Close with a handoff that a different operator can use: architecture, field dictionary, status registry, trigger rules, effect keys, privacy rules, test evidence, queue/log locations, reconciliation query, alert thresholds, exception process, replay procedure, rollback or compensation choices, credentials owner without credentials in the document, and review date.

Operating control	Compare or measure	Decision threshold	Owner output
Order reconciliation	Source and target by stable order key, state fields, totals, refunds, contact, and timestamps	Every variance classified within the agreed interval	Matched, repaired, held, excluded, or escalated list
Delivery health	Webhook status, queue depth, oldest pending item, attempts, errors, and lag	No silent disabled source or aging action beyond policy	Incident owner, cause, repair, gap window, and reconciliation
Effect integrity	Expected versus completed messages, tasks, access, fulfillment, and reporting effects	No duplicate irreversible effect; missing effects have an owner	Replay, compensation, customer support, or accepted exception
Identity quality	Unmatched contacts, possible duplicates, wrong relationships, guest resolution	No automatic ambiguous merge and no orphaned paid order	Resolved relationship, review case, or documented exclusion
Financial contradictions	Paid/refund evidence versus order and CRM state	Every amount or state contradiction is held from customer effects	Finance/gateway review and corrected source-backed facts
Change review	WooCommerce, gateway, connector, CRM, custom-status, and policy changes	Material changes trigger a representative regression test	Versioned map, test receipt, release owner, and next review date

Browser-local worksheet

Complete the 32-check WooCommerce order-to-CRM review

The checkboxes and progress state stay in this browser through local storage. They are not submitted to eArif.com and do not certify a store, payment, order, CRM, workflow, refund, subscription, or customer outcome. Reset clears the saved state. Print can be used for a privacy-safe review record.

Do not place credentials, API keys, webhook secrets, customer records, order exports, payment details, private payloads, addresses, support conversations, or production access information in this worksheet.

Implementation route

Choose the route that matches the first failed layer

Current evidence	Best next route	Why
You need a scoped source-to-target map before implementation	WooCommerce To CRM Automation Map	ECOM-079 is the existing `$297 Roadmap only` commercial owner for the agreed order-event, field, segment, and follow-up scope.
Keap is already selected and you need a bounded WooCommerce order and customer sync plan	WooCommerce To Keap Order Sync Plan	KEAP-030 retains the `$297 Plan first`, 5-7-business-day scope for mapping contacts, products, tags, fields, and follow-up; hands-on implementation and Keap-native product or order-form setup remain separate.
Webhook delivery, authentication, retries, or endpoint evidence is failing	API and Webhook Audit	The first failed layer is live transport or API behavior, not the business status map alone.
Duplicate, delayed, replayed, or out-of-order effects need a deeper design	Webhook reliability guide	The dedicated guide covers request verification, atomic claims, durable acceptance, per-effect idempotency, ordering, replay, and reconciliation.
The real outcome is WooCommerce purchase-to-LearnDash enrollment	WooCommerce to LearnDash access guide	Course access has its own product, user, enrollment, status, and recovery ownership.
The real outcome is membership or subscription payment recovery	Failed Payment Automation for Memberships	The commercial recovery owner preserves retries, grace periods, access, messaging, and subscription-specific decisions.
Payment, commerce, CRM, access, fulfillment, and reporting disagree	Systems Audit	The problem is cross-tool authority and first-divergence diagnosis.
The scope or safe starting point remains unclear	Contact Arif with privacy-safe context	Routing can start from platforms, order types, active statuses, desired CRM outcome, redacted error evidence, and the first known mismatch without credentials or customer data.

Review Ecommerce Automation Consultant for broader ecommerce operations, Proof before treating a public guide as project evidence, Privacy before sharing order or customer context, Learning Cave for adjacent implementation guides, and the AI Search Profile when a search or research agent needs the correct source for Arif's role and service boundaries.

Primary sources reviewed July 30, 2026

Official WooCommerce and Action Scheduler sources used for this map

Status behavior, checkout flows, APIs, extension triggers, retry limits, queue interfaces, analytics, and custom-status semantics can change. Recheck the live official page, current store configuration, gateway documentation, selected CRM documentation, and representative tests before production work.

WooCommerce: Order Statuses for current core status meanings, Draft checkout behavior, paid Processing, fulfillment-complete Completed, cancellation, and full-refund boundaries.
WooCommerce: Managing Orders for order administration, payment methods, customer verification, order details, testing, and order-note context.
WooCommerce: Troubleshooting Orders for pending, on-hold, processing, gateway, order-note, stock, and status-update diagnosis.
WooCommerce: View, Edit, or Add an Order for order details, status changes, items, totals, notes, and manual order operations.
WooCommerce: Refunding Orders for automatic and manual refund boundaries, partial-refund status behavior, line items, totals, restocking, and customer emails.
WooCommerce Zapier Integration for created, updated, paid, status-changed, offline-payment, asynchronous-delivery, duplicate-current-data, custom-status, subscription, and HPOS behavior.
WooCommerce developer docs: Working with Webhooks for topics, delivery status, secrets, default failure disabling, and webhook logs.
WooCommerce developer docs: Orders API for order IDs, customer IDs, guest orders, status, billing, payment, dates, totals, line items, and refunds.
WooCommerce developer docs: Webhooks API for webhook status, topic, resource, event, hooks, delivery URL, secret, and timestamps.
WooCommerce developer docs: REST API for API-key ownership, permissions, authentication, and supported order access.
Action Scheduler for traceable background processing, action lifecycle logs, timeouts, failures, and retained evidence.
Action Scheduler: Scheduled Actions Administration Screen for pending, failed, complete, and in-progress actions, hook/group sorting, manual runs, and per-action logs.
WooCommerce developer docs: High-Performance Order Storage for dedicated order tables, authoritative and backup roles, and current storage architecture.
WooCommerce developer docs: wc_get_orders and Order Queries for supported order retrieval, dates, statuses, payment fields, pagination, HPOS-aware APIs, and avoiding direct database assumptions.
WooCommerce Order Status Manager for custom-status paid, requires-payment, neutral, transition, email, and customer-experience configuration.
WooCommerce Order Status Control for paid-order completion behavior, virtual/downloadable defaults, gateway payment-complete requirements, and order-note evidence.
WooCommerce Analytics: Orders Report for order-status reporting, refund rows, and reconciliation context.
WooCommerce Email Settings for failed, on-hold, processing, completed, refunded, order-details, and customer-note notification behavior.

Frequently asked questions

WooCommerce order status and CRM automation questions

What is the best WooCommerce order status mapping for a CRM?

There is no universal one-column mapping. Keep the exact WooCommerce order status on a separate order or transaction record, then store paid evidence, fulfillment, refund amounts, and CRM contact lifecycle in distinct fields. Define actions from verified transitions and business policy. This preserves a contact who has several orders in different states and supports custom statuses without guessing their financial meaning.

Does WooCommerce Processing always mean the order is paid?

Core WooCommerce describes Processing as paid with stock reduced and fulfillment still required. However, WooCommerce's own integration documentation warns that paid state is not tied universally to one exact status, and gateways, custom code, manual changes, or custom statuses can affect behavior. Preserve the status, paid date, transaction or gateway evidence, payment method, and order notes separately before running a paid-only effect.

Should a CRM contact lifecycle stage change when an order status changes?

Not automatically. The contact represents the person, while the order status represents one transaction. A returning customer can have a Completed order and a separate Failed or Refunded order. Update the order or deal mirror by stable order ID, preserve transition history, and change the broader contact lifecycle only when a separate documented rule has sufficient relationship-level evidence.

Why did a partial WooCommerce refund not set the order to Refunded?

WooCommerce documents that the order does not change to Refunded unless the full order value is refunded. Store each refund record, amount, currency, items, time, and method separately in the integration. A manual refund also requires separate confirmation that money was returned outside WooCommerce. Do not infer every refund from the final order-status field.

How do I prevent duplicate CRM updates from WooCommerce?

Upsert the CRM order record by store plus internal WooCommerce order ID, keep an event and per-effect ledger, and give each one-time action a stable key such as store, order ID, effect name, and policy version. Compare delayed events with the current authoritative order before writing. On retry, read the existing target and complete only missing effects rather than recreating contacts, deals, tasks, messages, or access changes.

Can custom WooCommerce order statuses map to CRM stages?

They can map to controlled order-level facts and actions after their behavior is documented and tested. Record the status slug, label, whether it represents paid, requires payment, or neither, permitted transitions, customer emails, analytics treatment, connector coverage, and owner. Route unknown custom statuses to review. Do not infer payment, fulfillment, or contact lifecycle from a friendly status label alone.
